Applicable Materials: Carbon steel plate, stainless steel plate, aluminum plate, copper plate, titanium alloy, non-ferrous metals, rubber/plastic materials, marble, graphite, etc.
Workpiece Types: Various flat plate components.
| Parameter Item | Detailed Specification |
| Equipment Model | SMYJ - RRW1000 |
| Processing Width | 1000 mm (Customizable) |
| Processing Thickness | 1 - 80 mm |
| Lifting Method | Four-Post Synchronized Lifting (Digitally Set) |
| Abrasive Belt Linear Speed | 18 m/s (Optional Variable Frequency Speed Control) |
| Polishing Wheel Linear Speed | 20 m/s (Optional Variable Frequency Speed Control) |
| Conveyor Speed | 2 - 11 m/min (Variable Frequency Adjustable) |
| Auxiliary Equipment | Wet Dust Collector or Industrial Pulse Dust Collector |

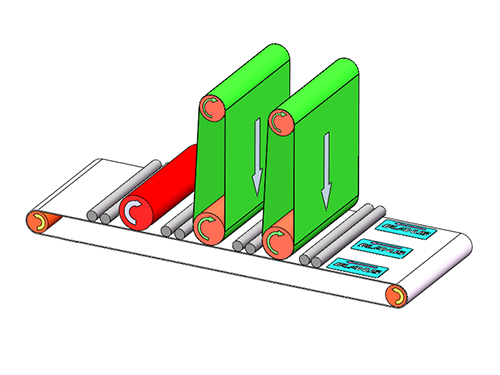

| Equipment Combination | Two-Stage Wide-Abrasive Belt + Polishing Wheel (Customizable) |
Feeding methods are provided based on workpiece material and size:
Conveyor Belt + Rubber Pressure Roller Pinch Feeding: Suitable for standard workpieces (length ≥ 280mm).
High-Strength Permanent Magnetic Adsorption: Suitable for carbon steel workpieces (size ≥ 10mm x 10mm).
Vacuum Negative Pressure Adsorption: Suitable for non-magnetic workpieces such as stainless steel, copper, and aluminum (size ≥ 50mm x 50mm).
Rubber Roller + Rubber Roller Pinch Feeding: Suitable for large and heavy workpieces (length ≥ 280mm).
 |  |
